High-Precision Sapphire Carrier Substrates for Advanced Semiconductor Packaging and Wafer-Level Processing

Short Description:

Our Sapphire Carrier is a precision-engineered support substrate designed for semiconductor manufacturing, advanced packaging, and wafer-level processing applications. Made from high-purity single-crystal sapphire (Al₂O₃), it combines excellent mechanical stiffness, high hardness, optical transparency, and dimensional stability to support wafers, dies, and panels during demanding manufacturing processes.

Send email to us

Features

Detailed Diagram

Product Overview

As semiconductor packaging technologies continue to evolve toward thinner wafers, finer interconnections, and more complex integration structures, carrier substrates play an increasingly important role in maintaining mechanical stability throughout processing. Sapphire is an attractive material for applications requiring reliable support, controlled thickness variation, high surface quality, and resistance to scratching and wear.

With a Young’s modulus of approximately 345–420 GPa, sapphire provides high rigidity that helps limit carrier deformation under appropriate process conditions. Its optical transmittance of over 83% across the specified 300–1200 nm wavelength range also makes it suitable for selected applications involving optical alignment, inspection, and laser-assisted processing.

Key Features of Sapphire Carriers

Excellent Mechanical Rigidity

Sapphire features a high Young’s modulus, providing a rigid and stable support platform for wafer and panel processing. This property is particularly valuable when handling thin semiconductor wafers or supporting dies during molding, grinding, and redistribution layer (RDL) fabrication.

High Hardness and Scratch Resistance

With a Mohs hardness of approximately 9, sapphire offers excellent resistance to scratching and surface wear. Its hardness helps preserve surface integrity during careful handling and repeated processing, although appropriate protection is still required to prevent chipping or impact damage.

High Optical Transmittance

Sapphire offers excellent optical transparency across a broad wavelength range. Depending on the bonding system and process configuration, this property can support optical inspection, alignment, and selected laser-assisted debonding applications.

Controlled Thickness and Surface Quality

Precision thickness control, low total thickness variation (TTV), and carefully finished surfaces are important for maintaining consistent contact and bonding conditions. Sapphire carriers can be customized to meet application-specific dimensional and surface requirements, helping support process repeatability.

Thermal and Chemical Stability

Sapphire offers good thermal stability and resistance to many chemical environments. These properties make it suitable for selected semiconductor processing conditions where carrier materials must maintain their structural integrity. Compatibility should be evaluated according to the actual temperature, chemical exposure, and bonding or release method.

Applications

Sapphire carriers can be designed for a variety of semiconductor manufacturing and advanced packaging processes, including:

Wafer-Level Packaging: Providing support during wafer handling, thinning, and subsequent processing.
Fan-Out Packaging: Supporting dies or molded structures during selected assembly and redistribution processes.
RDL Fabrication: Providing a stable platform for redistribution layer processing.
Mold-First Processes: Supporting face-up or face-down die assembly, molding, and related operations.
Ultra-Thin Wafer Handling: Improving mechanical support during back grinding and other precision handling steps.
Panel-Level Packaging: Serving as a rigid support substrate for suitable square or rectangular panel formats.
Optical Processing: Supporting applications requiring optical access or compatibility with suitable laser-assisted systems.

Actual suitability depends on the process flow, bonding materials, equipment configuration, and required carrier specifications.

Suggested Specifications Table

Parameter	Specification
Material	Single-crystal sapphire (Al₂O₃)

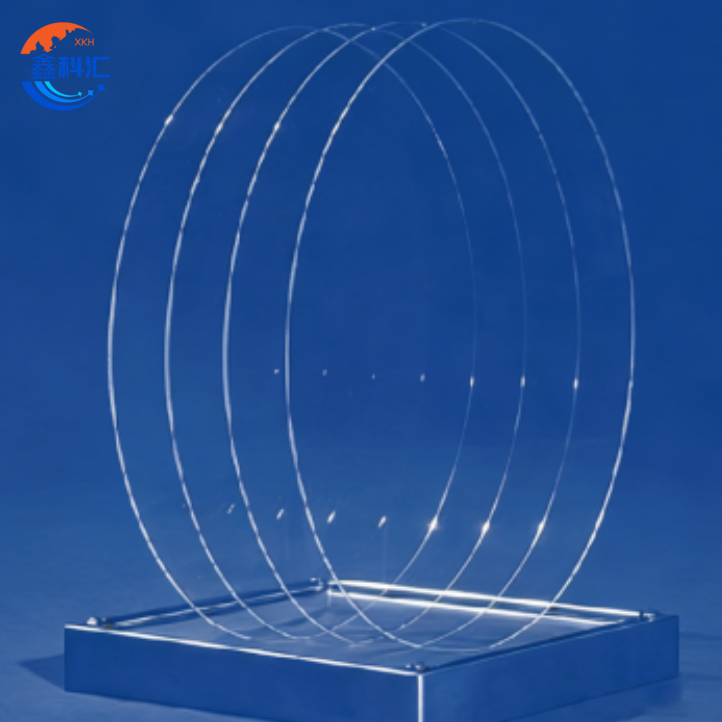

Wafer Sizes	8-inch and 12-inch

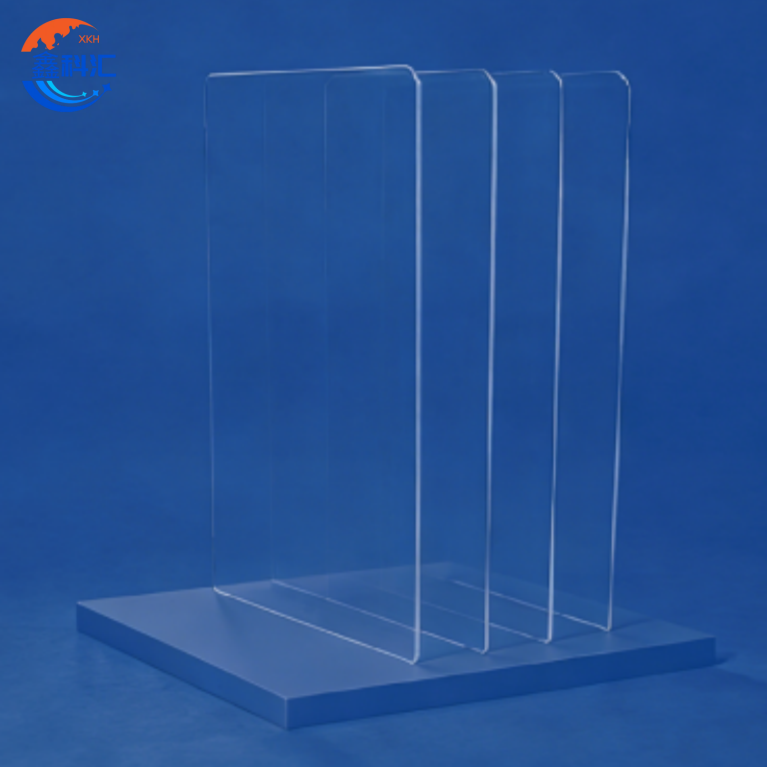

Panel Sizes	100 × 100 mm, 310 × 310 mm, 510 × 515 mm
Thickness	0.7–2.0 mm
Young’s Modulus	345–420 GPa
Optical Transmittance	>83% at 300–1200 nm
Mohs Hardness	9

Sapphire Carrier FAQ

1. Can sapphire carriers be used in advanced packaging processes?

Yes. Sapphire carriers can be considered for different advanced packaging flows, including Mold-First Face-Up, Mold-First Face-Down, and RDL-First processing. They can provide mechanical support during die assembly, molding, grinding, and redistribution layer fabrication, depending on the selected bonding and release system.

2. Are sapphire carriers suitable for wafer thinning and back grinding?

Yes. Their high stiffness helps maintain mechanical stability when supporting thin wafers during back grinding and related processing operations. Proper control of carrier thickness, TTV, surface flatness, and bonding uniformity is essential for achieving consistent results.

3. Can sapphire carriers be used for laser debonding?

Sapphire's optical transparency makes it a potential carrier material for laser-assisted debonding systems. However, suitability depends on the laser wavelength, sapphire thickness, bonding layer, and release mechanism. Compatibility should be evaluated against the actual equipment and process conditions.
