Fiber Laser Marking Machine Precision Engraving for Industrial Metals Plastics

Short Description:

A fiber laser marking machine is a high-precision, non-contact marking system that utilizes a fiber laser source to permanently etch, engrave, or label a wide variety of materials. These machines have gained widespread popularity in industrial applications due to their exceptional speed, reliability, and marking quality.

The working principle involves directing a high-powered laser beam, generated through fiber optics, onto the surface of the target material. The laser energy interacts with the surface, resulting in a physical or chemical change that creates visible marks. Typical applications include logos, serial numbers, barcodes, QR codes, and texts on metals (such as stainless steel, aluminum, and brass), plastics, ceramics, and coated materials.

Send email to us

Features

Detailed Display

Video Display

Introduction to Fiber Laser Marking Machine

Fiber lasers are known for their long operational lifespan—often exceeding 100,000 hours—and minimal maintenance requirements. They also feature high beam quality, which allows for ultra-fine, high-resolution marking, even on small components. Moreover, the machines are energy-efficient and produce minimal heat, reducing the risk of material deformation.

Fiber laser marking machines are widely used in automotive, aerospace, medical device manufacturing, electronics, and jewelry industries. Their ability to produce permanent, tamper-proof markings makes them ideal for traceability, compliance, and branding purposes.

Working Principle of Fiber Laser Marking Machines

Fiber laser marking machines function based on the principles of laser photothermal interaction and material absorption. The system uses a high-energy laser beam generated by a fiber laser source, which is then directed and focused onto the surface of a material to create permanent marks through localized heating, melting, oxidation, or material ablation.

The core of the system is the fiber laser itself, which employs a doped fiber optic cable—typically infused with rare-earth elements like ytterbium (Yb3+)—as the laser medium. Pump diodes inject light into the fiber, exciting the ions and creating a stimulated emission of coherent laser light, usually in the 1064 nm infrared wavelength range. This wavelength is highly effective for interacting with metals and certain plastics.

Once the laser is emitted, a set of galvanometer scanning mirrors rapidly guide the focused beam over the surface of the target object according to pre-programmed paths. The beam’s energy is absorbed by the material's surface, causing localized heating. Depending on the duration and intensity of the exposure, this can lead to surface discoloration, engraving, annealing, or even micro-ablation.

Because it is a non-contact process, the fiber laser does not exert any mechanical force, thus preserving the integrity and dimensions of delicate components. The marking is highly precise, and the process is repeatable, making it ideal for mass production environments.

In summary, fiber laser marking machines operate by focusing a high-energy, precisely controlled laser beam onto materials to alter their surface characteristics. This results in permanent, high-contrast marks that are resistant to wear, chemicals, and high temperatures.

Parameter

Parameter	Value
Laser Type	Fiber Laser
Wavelength)	1064nm
Repetition Rate)	1.6-1000KHz
Output Power)	20~50W
Beam Quality, M²	1.2~2
Max Single Pulse Energy	0.8mJ
Total Power Consumption	≤0.5KW
Dimensions	795 * 655 * 1520mm

Diverse Use Cases for Fiber Laser Engraving Machines

Fiber laser engraving machines are utilized in a wide array of industries for creating detailed, durable, and permanent markings on metal and non-metal surfaces. Their high-speed operation, low maintenance needs, and eco-friendly marking process make them an indispensable tool in advanced production lines and precision manufacturing facilities.

1. Industrial Manufacturing:

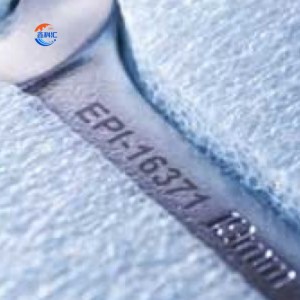

In heavy-duty manufacturing environments, fiber lasers are used to mark tools, machine parts, and product assemblies with serial numbers, part numbers, or quality control data. These markings ensure product traceability throughout the supply chain and enhance warranty tracking and quality assurance efforts.

2. Consumer Electronics:
Due to the miniaturization of devices, the electronics industry requires extremely small yet highly readable marks. Fiber lasers deliver this through micro-marking capabilities for smartphones, USB drives, batteries, and internal chips. The heat-free, clean marking ensures no interference with device performance.

3. Metal Fabrication and Sheet Processing:
Sheet metal processors use fiber laser engravers to apply design details, logos, or technical specifications directly onto stainless steel, carbon steel, and aluminum sheets. These applications are widely seen in kitchenware, construction fittings, and appliance manufacturing.

4. Medical Device Production:

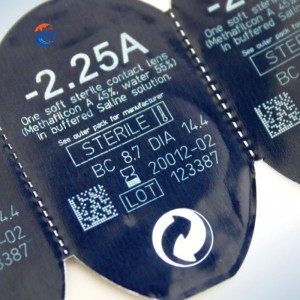

For surgical scissors, orthopedic implants, dental tools, and syringes, fiber lasers create sterilization-resistant marks that comply with FDA and international regulations. The precise, contactless nature of the process ensures no damage or contamination of the medical surface.

5. Aerospace and Military Applications:
Precision and durability are essential in defense and aerospace. Components like flight instruments, rocket parts, and satellite frames are marked with lot numbers, compliance certifications, and unique IDs using fiber lasers, guaranteeing traceability in mission-critical environments.

6. Jewelry Personalization and Fine Engraving:
Jewelry designers rely on fiber laser machines for intricate text, serial numbers, and design patterns on precious metal items. This allows for bespoke engraving services, brand authentication, and anti-theft identification.

7. Electrical and Cable Industry:
For marking on cable sheathing, electrical switches, and junction boxes, fiber lasers provide clean and wear-resistant characters, which are essential for safety labels, voltage ratings, and compliance data.

8. Food and Beverage Packaging:
Although traditionally not associated with metals, some food-grade packaging materials—especially aluminum cans or foil-wrapped products—can be marked using fiber lasers for expiry dates, barcodes, and brand logos.

Thanks to their adaptability, efficiency, and long service life, fiber laser marking systems are being integrated more and more into automated production lines, intelligent factories, and Industry 4.0 ecosystems.

Frequently Asked Questions (FAQ) About Fiber Laser Marking Machines

1. What materials can a fiber laser marking machine work on?
Fiber laser markers are most effective on metals such as stainless steel, aluminum, copper, brass, titanium, and gold. They can also be used on certain plastics (like ABS and PVC), ceramics, and coated materials. However, they are not suitable for materials that absorb little or no infrared light, such as transparent glass or organic wood.

2. How permanent is the laser mark?
Laser markings created by fiber lasers are permanent and highly resistant to wear, corrosion, and high temperatures. They will not fade or be easily removed under normal use conditions, making them ideal for traceability and anti-counterfeiting.

3. Is the machine safe to operate?
Yes, fiber laser marking machines are generally safe when operated correctly. Most systems come equipped with protective enclosures, interlock switches, and emergency stop functions. However, as laser radiation can be harmful to eyes and skin, it is important to follow all safety guidelines and wear appropriate protective equipment, especially with open-type machines.

4. Does the machine require any consumables?
No, fiber lasers are air-cooled and do not require any consumable materials like ink, solvents, or gas. This makes the cost of operation very low over the long term.

5. How long does the fiber laser last?
A typical fiber laser source has an expected operational life of 100,000 hours or more under normal use. It is one of the longest-lasting laser types on the market, offering exceptional durability and reliability.

6. Can the laser engrave deep into metal?
Yes. Depending on the power of the laser (e.g., 30W, 50W, 100W), fiber lasers can perform both surface marking and deep engraving. Higher power levels and slower marking speeds are required for deeper engravings.

7. What file formats are supported?
Most fiber laser machines support a wide range of vector and image file formats, including PLT, DXF, AI, SVG, BMP, JPG, and PNG. These files are used to generate marking paths and content via the software provided with the machine.

8. Is the machine compatible with automation systems?
Yes. Many fiber laser systems come with I/O ports, RS232, or Ethernet interfaces for integration into automated production lines, robotics, or conveyor systems.

9. What maintenance is required?
Fiber laser machines require very minimal maintenance. Routine tasks may include cleaning the lens and dust removal from the scanning head area. There are no parts that need frequent replacement.

10. Can it mark curved or irregular surfaces?
Standard fiber laser machines are optimized for flat surfaces, but with accessories like rotary devices or 3D dynamic focusing systems, it is possible to mark on curved, cylindrical, or uneven surfaces with high precision.
