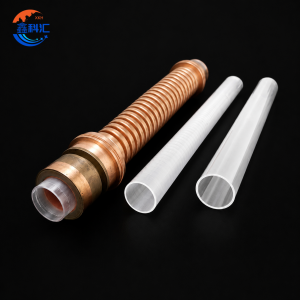

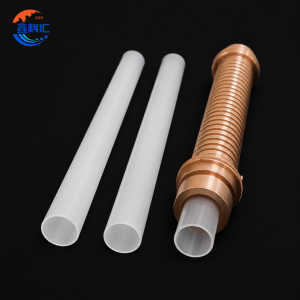

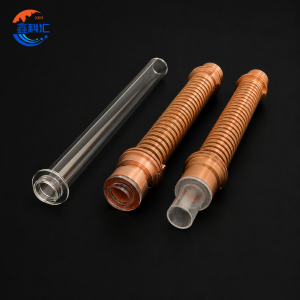

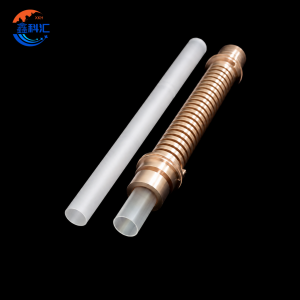

Semiconductor Sapphire Tube with Metal Sleeve Assembly

Short Description:

The Semiconductor Sapphire Tube with Metal Sleeve Assembly is a precision-engineered component designed for semiconductor manufacturing and process equipment. It combines a high-purity sapphire tube with a customized metal sleeve and connection structure, providing excellent electrical insulation, high-temperature resistance, chemical stability, and reliable mechanical support in demanding process environments.

Send email to us

Features

Detailed Diagram

Overview

The sapphire tube serves as the critical functional component, offering excellent resistance to high temperatures, corrosive process gases, plasma exposure, and chemical contamination. The external metal sleeve provides structural support, protection, and secure integration with semiconductor equipment.

Key Features

High-Purity Sapphire Tube: Excellent thermal stability, chemical resistance, and electrical insulation.
Metal Sleeve Assembly: Provides mechanical protection, support, and reliable equipment integration.
High-Temperature Performance: Suitable for demanding semiconductor thermal processing environments.
Excellent Electrical Insulation: Sapphire helps maintain electrical isolation in sensitive equipment.
Low Contamination: High-purity sapphire is suitable for applications requiring a clean process environment.
Precision Machining: Sapphire tubes and metal components can be manufactured to tight dimensional requirements.
Custom Configuration: Tube dimensions, wall thickness, metal material, sleeve structure, connection method, and assembly dimensions can be customized according to drawings or samples.

Semiconductor Applications

This sapphire tube and metal sleeve assembly can be used in various semiconductor and advanced manufacturing equipment, including:

Semiconductor processing equipment
Wafer processing systems
High-temperature process equipment
Vacuum processing equipment
Plasma processing equipment
CVD and PVD equipment
Semiconductor inspection and analytical equipment
Custom process modules and equipment assemblies

Semiconductor Applications

This sapphire tube and metal sleeve assembly can be used in various semiconductor and advanced manufacturing equipment, including:

Semiconductor processing equipment
Wafer processing systems
High-temperature process equipment
Vacuum processing equipment
Plasma processing equipment
CVD and PVD equipment
Semiconductor inspection and analytical equipment
Custom process modules and equipment assemblies

FAQ – Semiconductor Sapphire Tube with Metal Sleeve Assembly

1. What is a semiconductor sapphire tube with metal sleeve assembly?

It is a customized semiconductor equipment component consisting of a high-purity sapphire tube and a precision-machined metal sleeve. The assembly provides high-temperature resistance, electrical insulation, chemical stability, and mechanical support for demanding semiconductor processes.

2. Why is sapphire used for semiconductor equipment?

Sapphire offers excellent high-temperature stability, electrical insulation, chemical resistance, hardness, and low contamination characteristics, making it suitable for semiconductor processing environments.

3. What materials are available for the metal sleeve?

The metal sleeve can be manufactured from materials such as copper, stainless steel, aluminum, or other alloys, depending on the equipment design, temperature, vacuum, and thermal requirements.
