Device-Grade hBN Single Crystal | High-Quality Hexagonal Boron Nitride for 2D Materials
Detailed Diagram
Product Overview

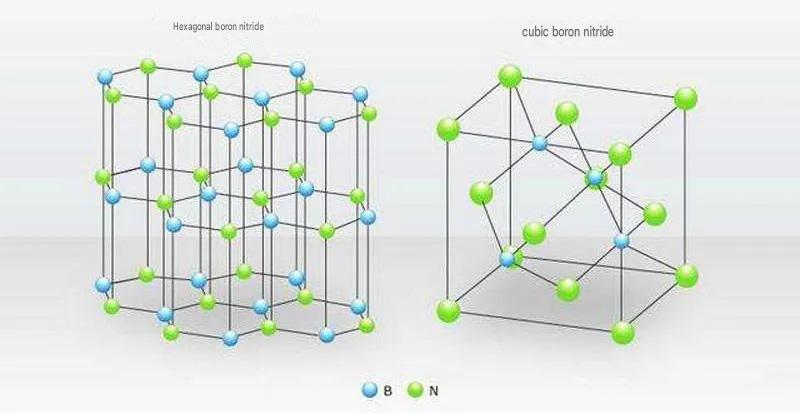

Our Device-Grade hBN Single Crystal is a high-quality hexagonal boron nitride bulk single crystal designed for advanced 2D material research and device fabrication. Grown by a proprietary atmospheric-pressure process, this hBN crystal features high crystal quality, clean cleavage behavior, large-area single-domain regions and excellent optical transparency.
It is especially suitable as a substrate or encapsulation layer for 2D heterostructures, graphene-based devices, nanophotonic structures and deep-ultraviolet optoelectronic applications. Third-party device-level validation shows that this hBN material can deliver performance comparable to, or better than, current academic gold-standard crystals in graphene heterostructure applications.
Technical Specifications
- Device-grade hBN single crystal
- Proprietary atmospheric-pressure growth process
- Typical lateral crystal size ≥ 1 mm
- High dielectric breakdown field: 1.64 ± 0.06 V/nm
- Graphene room-temperature mobility on hBN: ~80,000 cm²/V·s
- hBN Raman E₂g FWHM: 7.88 cm⁻¹
- UV band-edge emission around 215 nm
- Suitable for 2D heterostructures, graphene devices, nanophotonics and deep-UV optoelectronics
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Device-Grade hBN Single Crystal |
| Material | Hexagonal Boron Nitride Single Crystal |
| Crystal Grade | Device Grade |
| Growth Process | Proprietary Atmospheric-Pressure Growth |
| Form | Bulk Single Crystal with Growth Facets |
| Typical Lateral Size | ≥ 1 mm |
| Packaging | Chip Carrier, 5–10 Crystals / Pack |
| Dielectric Breakdown Field | 1.64 ± 0.06 V/nm |
| Graphene Mobility on hBN | ~80,000 cm²/V·s at room temperature |
| hBN Raman E₂g FWHM | 7.88 cm⁻¹ |
| UV Band-Edge Emission | ~215 nm |
Product Advantages
Compared with ordinary commercial hBN crystals, this device-grade hBN is developed for applications where crystal quality, interfacial cleanliness and device performance are critical. The material has been benchmarked through third-party graphene heterostructure device testing and shows performance at or above the level of leading academic reference crystals.

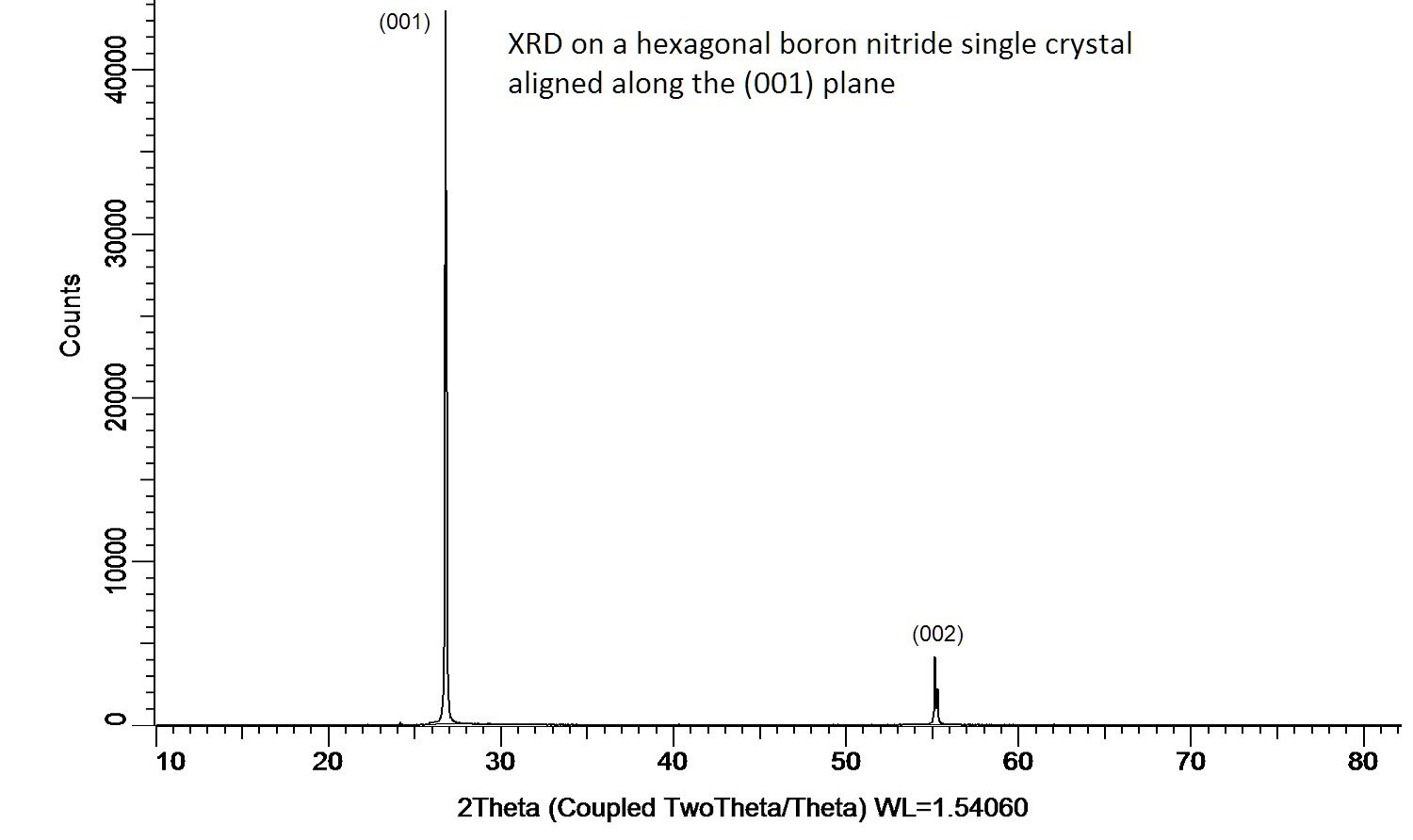

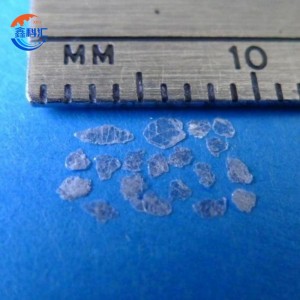

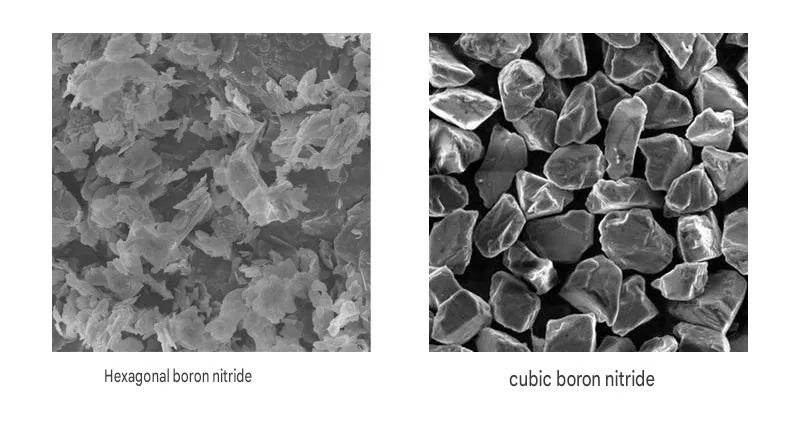

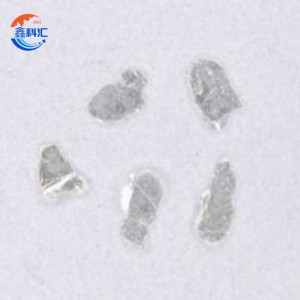

The crystal dimensions shown in the datasheet indicate representative lateral sizes above 1 mm, with some measured crystal edges exceeding 1.4 mm. Optical microscope images also show clear growth facets, sharp cleavage edges, transparent crystal regions and large usable single-domain areas.
FAQ
Q1: What is this hBN single crystal mainly used for?
It is mainly used as a substrate or encapsulation layer for 2D heterostructures, graphene devices, nanophotonics and deep-UV optoelectronic research.
Q2: What is the typical crystal size?
The standard device-grade specification is ≥ 1 mm lateral size. Representative samples in the datasheet show measured dimensions above 1 mm, with some edges reaching over 1.4 mm.
Q3: Is this material suitable for graphene devices?
Yes. The datasheet reports typical graphene room-temperature mobility on hBN of approximately 80,000 cm²/V·s, making it suitable for high-mobility graphene device research.
Q4: What is the packaging format?
The product is typically supplied in a chip carrier, with 5–10 crystals per pack.
