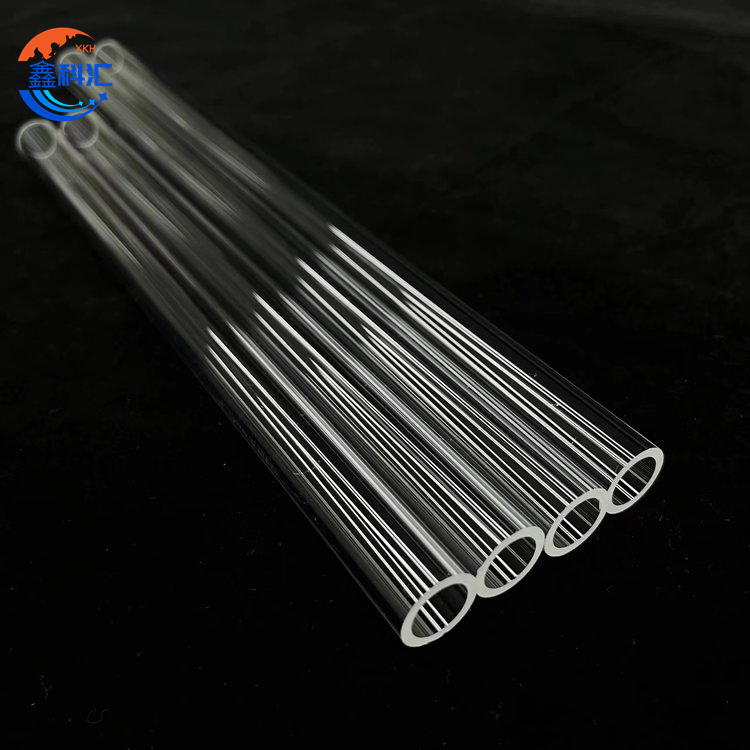

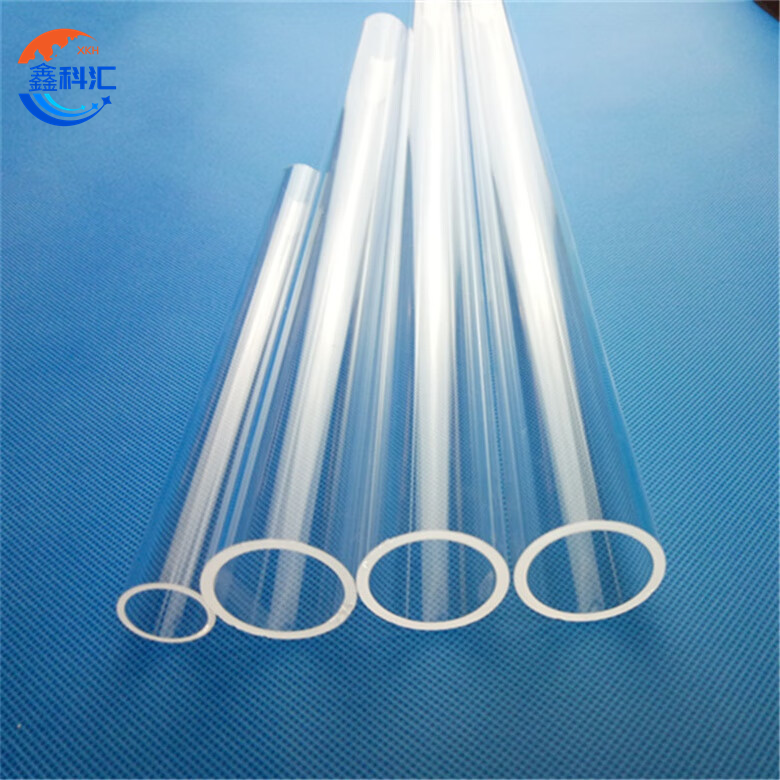

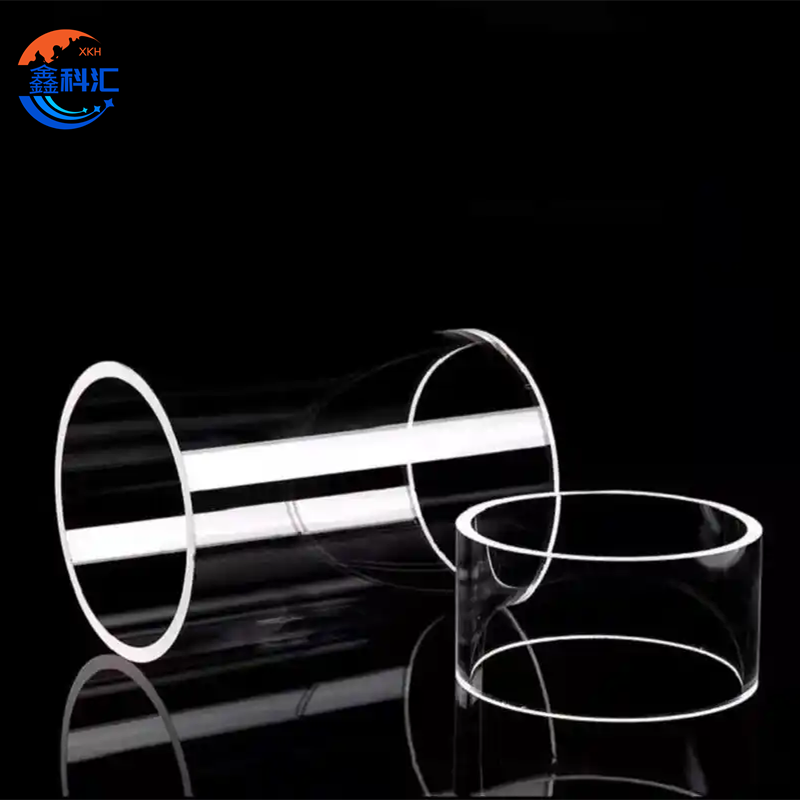

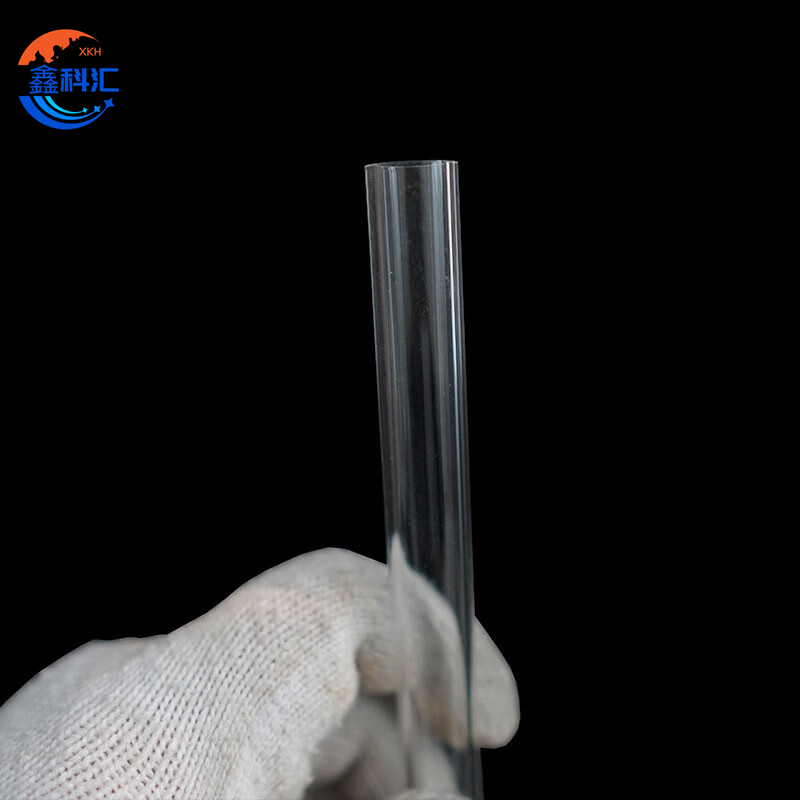

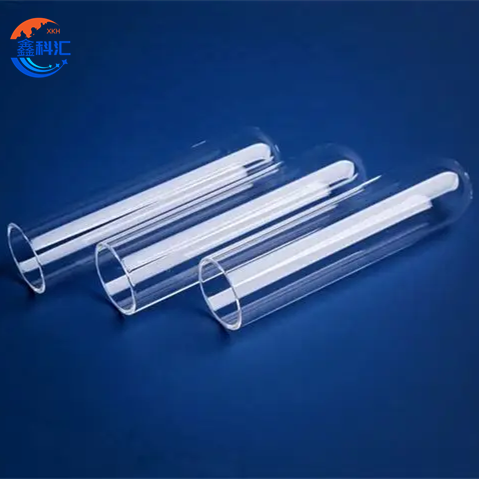

Quartz tube Dia10 mm 12mm thickness 1mm 1.5mm for Atmospheric Reaction

Short Description:

OD (mm)	ID (mm)	Length (mm)
18	15	300
25	22	300
25	22	600
50	46	610
We can provide customization for other sizes, as well as single and double-end sealing options

Send email to us

Features

Quartz Tube Introduction

Quartz tubes are indispensable components in the semiconductor industry, primarily used for high-temperature and chemical-resistant applications. Made from high-purity quartz glass, these tubes are essential for processes that require high thermal stability and chemical inertness, which are critical in semiconductor fabrication.

One of the main applications of quartz tubes in semiconductor manufacturing is in chemical vapor deposition (CVD) and thermal oxidation processes. These processes are used to grow thin films or deposit materials onto semiconductor wafers. Quartz tubes provide an ideal environment for these reactions due to their ability to withstand high temperatures, typically up to 1,100°C or more, and their resistance to most chemicals used in the semiconductor industry.

Quartz Tube Materials And Properties

Material--Fused Silica, BF33, JGS1, and JGS2 Glass

Fused silica, BF33, JGS1, and JGS2 are specialized glasses used in semiconductor manufacturing, optics, and scientific instrumentation.

Fused Silica is a high-purity form of silicon dioxide, known for its low thermal expansion, thermal shock resistance, and chemical inertness. It is used in semiconductor processes like CVD and UV lithography due to its UV transparency and high-temperature stability.

BF33 Glass is an optical glass with good light transmission, low dispersion, and low thermal expansion, often used in high-precision optical systems, such as microscopes and cameras.

JGS1 and JGS2 are optical glasses known for excellent clarity across visible to infrared spectrums. JGS1 is used in optical windows, while JGS2 offers enhanced precision for high-performance applications like laser systems.

These materials provide the thermal stability, clarity, and precision required for high-tech industries.

Properties of Fused Silica, BF33, JGS1, and JGS2 Glass Tubes

Fused Silica glass tubes are known for their excellent thermal stability, with a very low coefficient of thermal expansion (CTE), making them resistant to thermal shock and capable of withstanding high temperatures (up to 1,100°C). They are chemically inert, resistant to most acids, and transparent to UV light, making them ideal for semiconductor applications and UV lithography.

BF33 Glass tubes offer good light transmission, low dispersion, and low thermal expansion. They are commonly used in optical applications, providing precision and clarity in lenses, prisms, and optical systems, with moderate resistance to temperature changes.

JGS1 glass tubes are highly transparent with excellent optical clarity in the visible to infrared spectrum. They are used for optical windows and lenses, offering good thermal stability.

JGS2 glass tubes, like JGS1, provide high precision and durability, making them suitable for high-performance applications, such as

Product Packaging

About XINKEHUI

Shanghai Xinkehui New Material Co., Ltd. is not only one of the largest optical and semiconductor suppliers in China, but it also boasts its own dedicated manufacturing facilities for producing high-quality quartz tubes. With a strong foundation in semiconductor materials, Xinkehui is well-equipped to meet the demands of various industries that require precision-engineered materials, such as the semiconductor, electronics, and chemical industries.

Since its establishment in 2002, Xinkehui has continuously invested in research, development, and the enhancement of production capabilities. The company operates state-of-the-art facilities that allow for the manufacturing of quartz tubes with a range of diameters, thicknesses, and lengths, tailored to the specific needs of its clients. These tubes are essential for high-temperature processes such as chemical vapor deposition (CVD), wafer cleaning, and semiconductor fabrication.

Xinkehui’s expertise in quartz tube production is supported by a team of skilled engineers and technicians who ensure that every product meets the highest standards of quality and performance. The company uses advanced manufacturing techniques and the finest raw materials to produce quartz tubes that offer superior thermal stability, chemical resistance, and optical clarity.
