High-Speed Laser Communication Components & Terminals

Short Description:

Built for next-generation satellite communications, this family of laser communication components and terminals leverages advanced opto-mechanical integration and near-infrared laser technology to deliver high-speed, reliable links for both inter-satellite and satellite-to-ground communications.

Send email to us

Features

Detailed Diagram

Overview

Compared with traditional RF systems, laser communication offers markedly higher bandwidth, lower power consumption, and superior anti-interference and security. It is well-suited to large constellations, Earth observation, deep-space exploration, and secure/quantum communications.

The portfolio spans high-precision optical assemblies, inter-satellite and satellite-to-ground laser terminals, and a comprehensive ground far-field equivalent test system—forming a complete end-to-end solution.

Key Products & Specifications

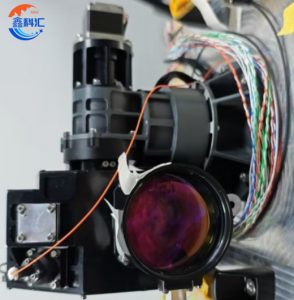

D100 mm Opto-Mechanical Assembly

Clear Aperture: 100.5 mm
Magnification: 14.82×
Field of View: ±1.2 mrad
Incident–Exit Optical Axis Angle: 90° (zero-field configuration)
Exit Pupil Diameter: 6.78 mm
Highlights:
Precision optical design maintains excellent beam collimation and stability over long ranges.
90° optical-axis layout optimizes the path and reduces system volume.
Robust structure and premium materials deliver strong vibration resistance and thermal stability for in-orbit operation.

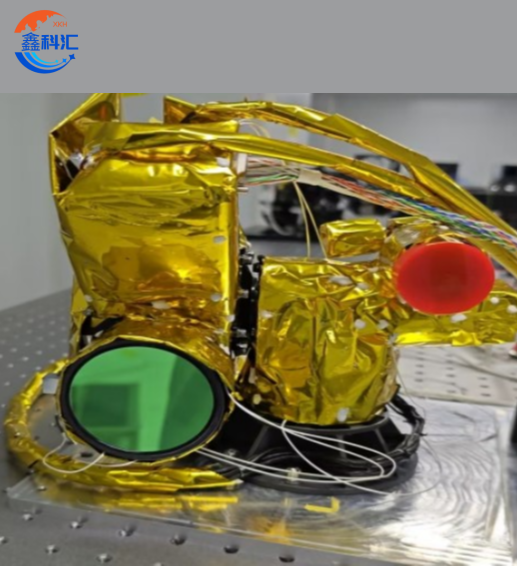

D60 mm Laser Communication Terminal

Data Rate: 100 Mbps bidirectional @ 5,000 km
Link Type: Inter-satellite
Aperture: 60 mm
Weight: ~7 kg
Power Consumption: ~34 W
Highlights: Compact, low-power design for small-sat platforms while maintaining high link reliability.

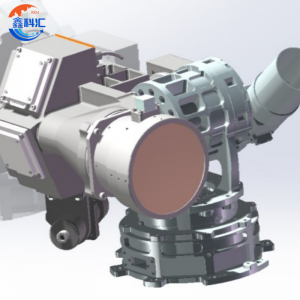

Cross-Orbit Laser Communication Terminal

Data Rate: 10 Gbps bidirectional @ 3,000 km
Link Types: Inter-satellite and satellite-to-ground
Aperture: 60 mm
Weight: ~6 kg
Highlights: Multi-Gbps throughput for massive downlinks and inter-constellation networking; precision acquisition and tracking ensure a stable connection under high relative motion.

Co-Orbit Laser Communication Terminal

Data Rate: 10 Mbps bidirectional @ 5,000 km
Link Types: Inter-satellite and satellite-to-ground
Aperture: 60 mm
Weight: ~5 kg
Highlights: Optimized for same-plane communications; lightweight and low-power for constellation-scale deployments.

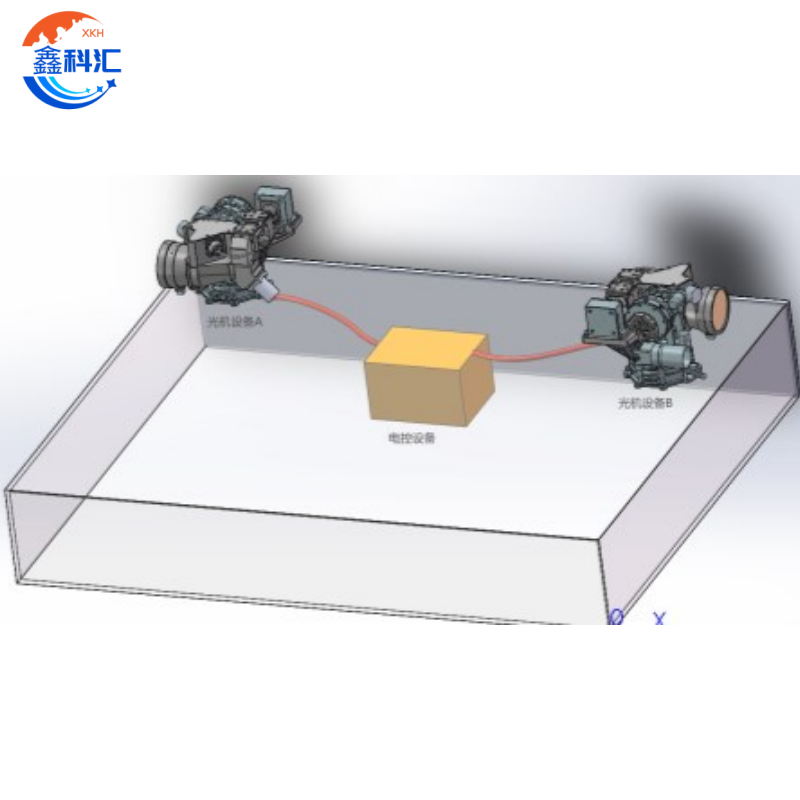

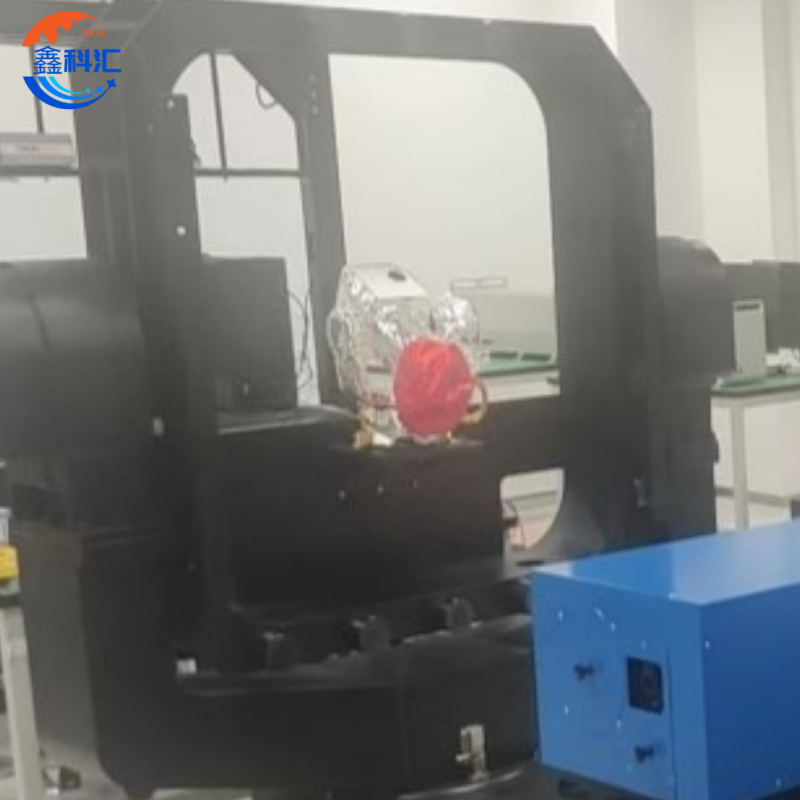

Satellite Laser Link Ground Far-Field Equivalent Test System

Purpose: Simulates and verifies satellite laser link performance on the ground.
Advantages:
Comprehensive testing of beam stability, link efficiency, and thermal behavior.
Reduces on-orbit risk and enhances mission reliability prior to launch.

Core Technologies & Advantages

High-Speed, Large-Capacity Transmission: Bidirectional data rates up to 10 Gbps enable rapid downlink of high-resolution imagery and near-real-time science data.
Lightweight & Low Power: Terminal mass of 5–7 kg with ~34 W power draw minimizes payload burden and extends mission life.
High-Precision Pointing & Stability: ±1.2 mrad field of view and 90° optical-axis design deliver exceptional pointing accuracy and beam stability across multi-thousand-kilometer links.
Multi-Link Compatibility: Seamlessly supports inter-satellite and satellite-to-ground communications for maximum mission flexibility.
Robust Ground Verification: Dedicated far-field test system provides full-scale simulation and validation for high on-orbit reliability.

Application Fields

Satellite Constellation Networking: High-bandwidth inter-satellite data exchange for coordinated operations.
Earth Observation & Remote Sensing: Rapid downlink of large-volume observation data, shortening processing cycles.
Deep-Space Exploration: Long-distance, high-speed communications for lunar, Martian, and other deep-space missions.
Secure & Quantum Communication: Narrow-beam transmission is inherently resistant to eavesdropping and supports QKD and other high-security applications.

FAQ

Q1. What are the main advantages of laser communication over traditional RF?
A. Much higher bandwidth (hundreds of Mbps to multi-Gbps), better resistance to electromagnetic interference, improved link security, and reduced size/power for an equivalent link budget.

Q2. Which missions are best suited for these terminals?
A.

Inter-satellite links within large constellations
High-volume satellite-to-ground downlinks
Deep-space exploration (e.g., lunar or Martian missions)
Secure or quantum-encrypted communications

Q3. What typical data rates and distances are supported?

Cross-Orbit Terminal: up to 10 Gbps bidirectional over ~3,000 km
D60 Terminal: 100 Mbps bidirectional over ~5,000 km
Co-Orbit Terminal: 10 Mbps bidirectional over ~5,000 km
