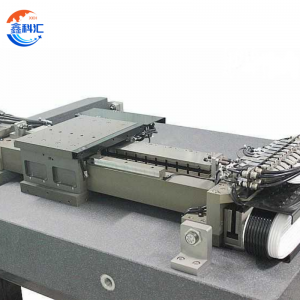

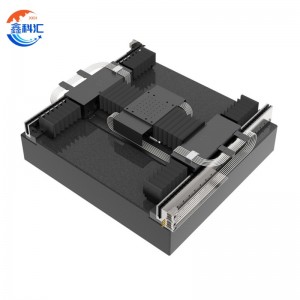

Ultra-Precision SiC Air-Bearing Stage

Short Description:

With the continuous evolution of the semiconductor industry, processing and inspection equipment demand ever-higher performance. Building on extensive expertise in motion control and nanometer-level positioning, we have developed a planar H-type dual-axis ultra-precision air-bearing stage.

Send email to us

Features

Detailed Diagram

Overview

Engineered with a finite-element-optimized silicon carbide (SiC) ceramic structure and compensated air-bearing technology, the stage delivers outstanding accuracy, rigidity, and dynamic response. It is ideally suited for:

Semiconductor processing and inspection
Micro/nano fabrication and metrology
Nanometer-scale fly-cutting and polishing
High-speed precision scanning

Key Features

SiC air-bearing guideway for ultra-high stiffness and precision
High dynamics: velocity up to 1 m/s, acceleration up to 4 g, rapid settling
Dual-drive gantry Y-axis ensures high load capacity and stability
Encoder options: optical grating or laser interferometer
Positioning accuracy: ±0.15 μm; repeatability: ±75 nm
Optimized cable routing for clean design and long-term reliability
Customizable configurations for application-specific needs

Ultra-Precision Design & Direct-Drive, Non-Contact Architecture

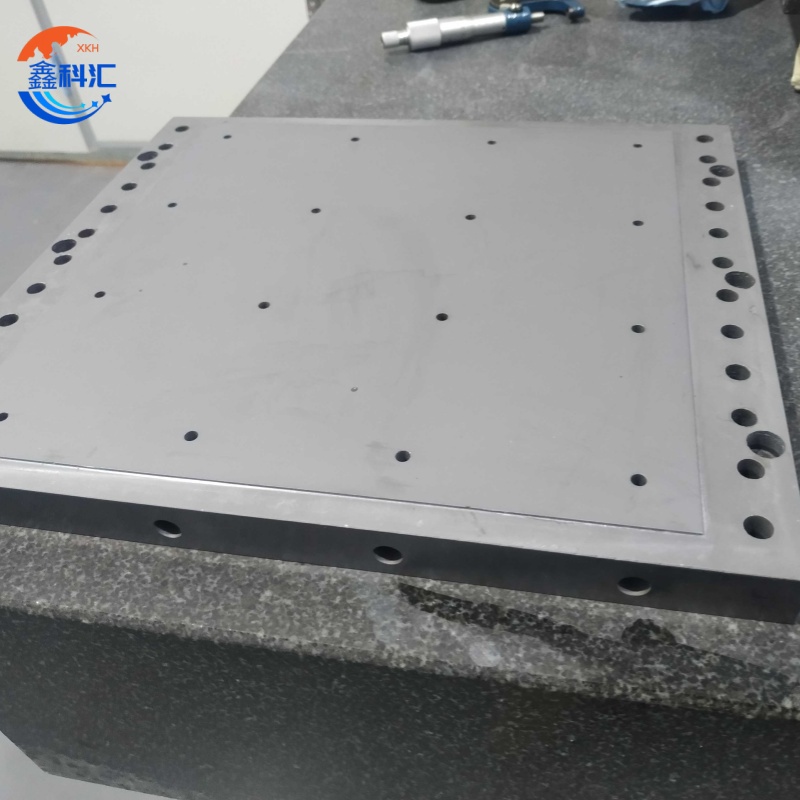

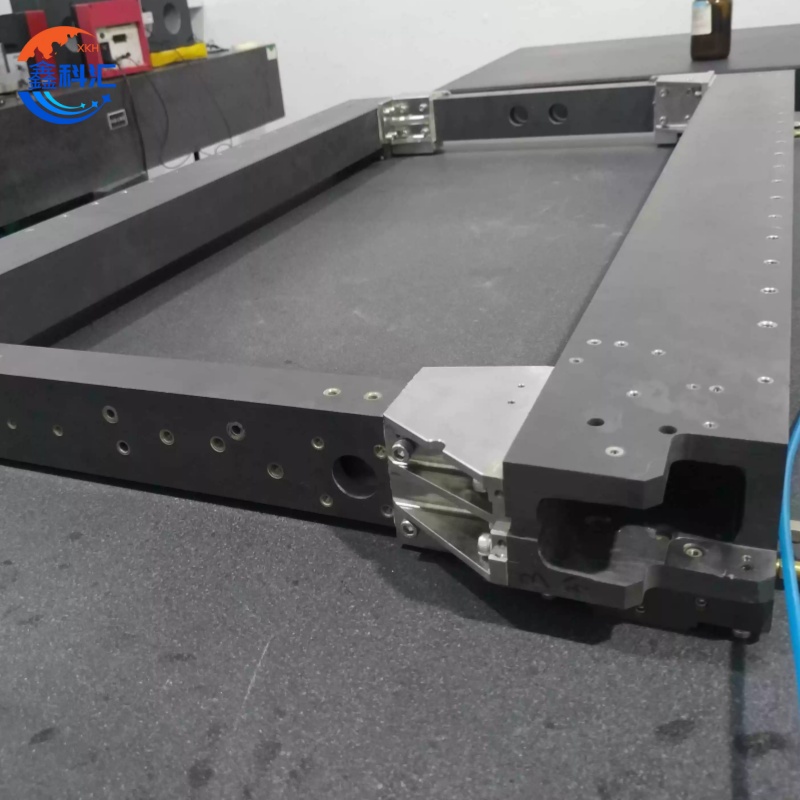

SiC Ceramic Frame: ~5× the stiffness of aluminum alloy and ~5× lower thermal expansion, ensuring high-speed stability and thermal robustness.
Compensated Air-Bearing: Proprietary design enhances stiffness, load capacity, and motion stability.
Dynamic Performance: Supports 1 m/s velocity and 4 g acceleration, ideal for high-throughput processes.
Seamless Integration: Compatible with vibration isolation systems, rotary stages, tilt modules, and wafer handling platforms.
Cable Management: Controlled bending radius minimizes stress for extended service life.

Coreless Linear Motor: Smooth motion with zero cogging force.
Multi-Motor Drive: Load-plane motor placement improves straightness, flatness, and angular precision.
Thermal Isolation: Motors are isolated from the stage structure; optional air or water cooling for high-duty cycles.

Specifications

Model	400-400	500-500	600-600
Axes	X (scan) / Y (step)	X (scan) / Y (step)	X (scan) / Y (step)
Travel (mm)	400 / 400	500 / 500	600 / 600
Accuracy (μm)	±0.15	±0.2	±0.2
Repeatability (nm)	±75	±100	±100
Resolution (nm)	0.3	0.3	0.3
Max Speed (m/s)	1	1	1
Acceleration (g)	4	4	4
Straightness (μm)	±0.2	±0.3	±0.4
Stability (nm)	±5	±5	±5
Max Load (kg)	20	20	20
Pitch/Roll/Yaw (arc-sec)	±1	±1	±1

Test Conditions:

Air supply: clean, dry; dew point ≤ 0°F; particle filtration ≤ 0.25 μm; or 99.99% nitrogen.
Accuracy measured 25 mm above stage center at 20±1 °C, 40–60% RH.

Applications

Semiconductor lithography, inspection, and wafer handling
Micro/nano fabrication and precision metrology
High-end optics manufacturing and interferometry
Aerospace and advanced scientific research

FAQ – Silicon Carbide Air-Bearing Stage

1. What is an air-bearing stage?

An air-bearing stage uses a thin film of pressurized air between the stage and guideway to provide frictionless, wear-free, and ultra-smooth motion. Unlike conventional mechanical bearings, it eliminates stick-slip, delivers nanometer-level accuracy, and supports long-term reliability.

2. Why use silicon carbide (SiC) for the stage structure?

High stiffness: ~5× that of aluminum alloy, minimizing deformation during dynamic motion.
Low thermal expansion: ~5× lower than aluminum, maintaining accuracy under temperature variations.
Lightweight: Lower density compared to steel, enabling high-speed and high-acceleration operation.
Excellent stability: Superior damping and rigidity for ultra-precision positioning.

3. Does the stage require lubrication or maintenance?

No traditional lubrication is needed since there is no mechanical contact. Recommended maintenance includes:

Supplying clean, dry compressed air or nitrogen
Periodic inspection of filters and dryers
Monitoring cables and cooling systems

4. What are the air supply requirements?

Dew point: ≤ 0 °F (≈ –18 °C)
Particle filtration: ≤ 0.25 μm
Clean, dry air or 99.99% pure nitrogen
Stable pressure with minimal fluctuation
