High-Purity Quartz Boat for High-Temperature Applications

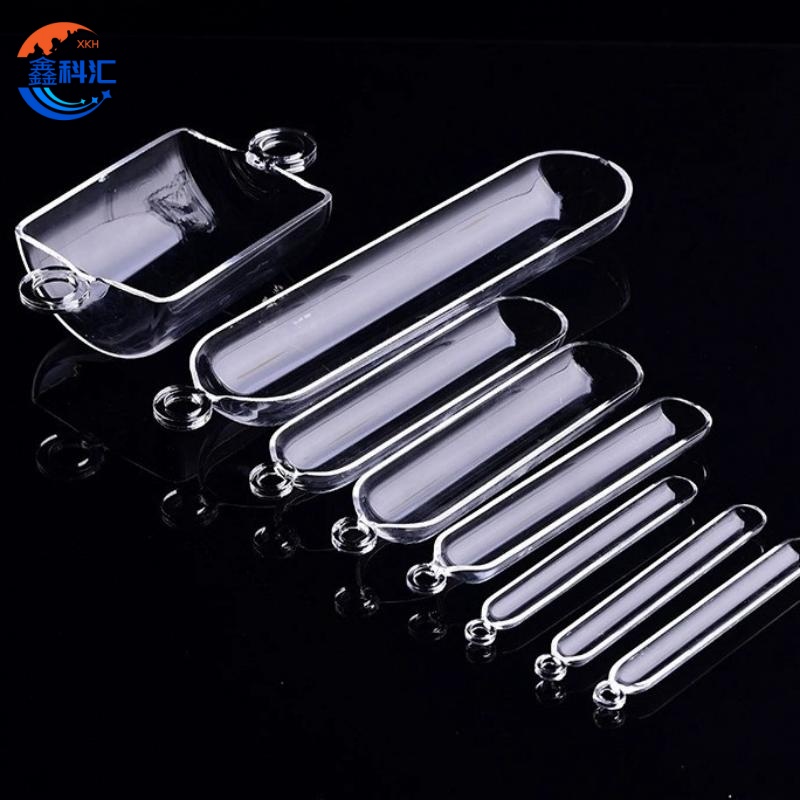

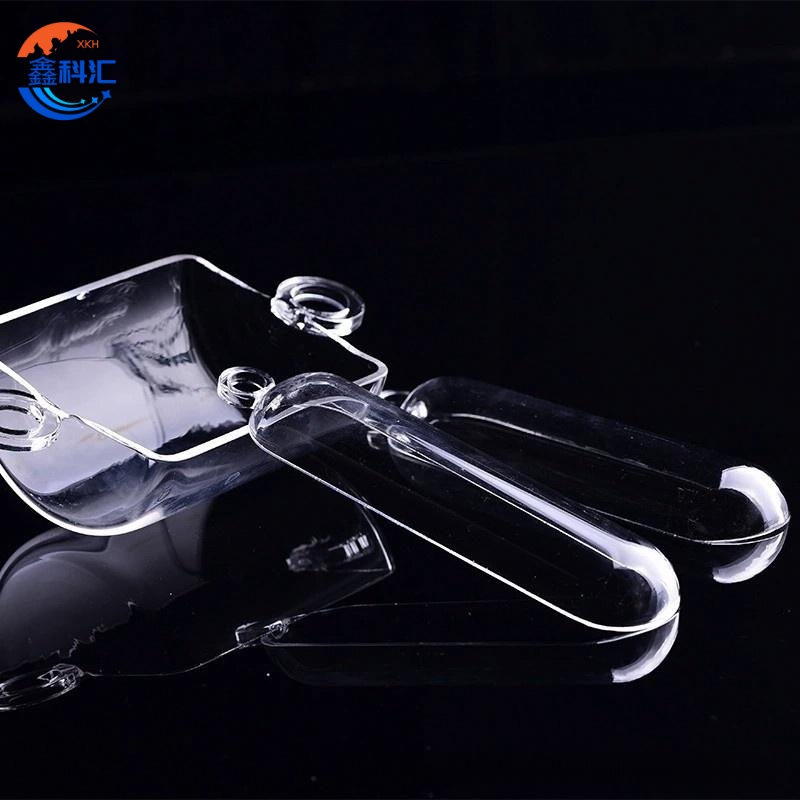

Detailed Diagram
Product Description of Quartz
Our High-Purity Quartz Boat is a precision-engineered component developed for high-temperature processing, wafer transportation, and material support in semiconductor and advanced manufacturing applications. Produced from selected quartz materials, it combines thermal stability, chemical durability, and dimensional precision to meet the demands of specialized industrial processes.
Quartz is widely used in thermal processing equipment because of its low thermal expansion and resistance to many corrosive chemicals. These properties make quartz boats a practical choice for applications requiring reliable performance under repeated heating and cooling cycles, subject to the selected material grade and actual operating conditions.
The boat can be manufactured with multiple slots or customized support structures to accommodate different wafer sizes and loading requirements. Carefully controlled dimensions and surface quality help ensure proper wafer positioning and compatibility with the corresponding processing equipment.
Main Product Benefits
1. Excellent Thermal Performance
Quartz offers a low coefficient of thermal expansion, helping reduce dimensional changes caused by temperature fluctuations. Properly designed quartz boats can support repeated thermal processing cycles within their specified operating limits.
2. Chemical Durability
High-purity quartz demonstrates good resistance to many commonly used process chemicals, making it suitable for selected semiconductor and laboratory environments.
3. High-Purity Material Options
Quartz material can be selected according to process cleanliness requirements, helping minimize unwanted contamination in sensitive applications.
4. Precision Manufacturing
Slot dimensions, spacing, overall length, width, and other critical features can be customized to meet specific equipment and process requirements.
5. Flexible Design and Customization
We offer quartz boats in a variety of configurations, including different slot counts, wafer capacities, support structures, and overall dimensions.
Typical Applications
- Semiconductor wafer diffusion and oxidation
- High-temperature annealing and heat treatment
- Solar photovoltaic cell processing
- Quartz tube furnace systems
- Laboratory and research equipment
- Other high-temperature industrial processes requiring quartz components
Customized Quartz Boat Solutions
We understand that different thermal processing systems require different carrier designs. Our customized quartz boat solutions can be developed according to technical drawings, sample components, wafer specifications, and equipment dimensions.
Customers can specify the quartz material grade, boat dimensions, slot pitch, slot depth, wafer capacity, and surface finishing requirements. For applications involving rapid temperature changes, prolonged high-temperature exposure, or aggressive chemical environments, material selection and structural design should be evaluated against the actual process conditions.
Contact us to discuss your application and obtain a quartz boat solution tailored to your equipment and manufacturing requirements.
Quartz Boat FAQ
1. What is a quartz boat?
A quartz boat is a specialized carrier made from quartz glass, designed to hold, support, and position wafers or other materials during high-temperature processing. It is widely used in semiconductor manufacturing, solar cell production, laboratory furnaces, and other industrial thermal processing applications.
2. What are the main advantages of a quartz boat?
Quartz boats offer several advantages, including excellent thermal stability, low thermal expansion, good resistance to many chemicals, and the potential for high material purity. These properties make them suitable for applications requiring reliable material support and low contamination risk.
3. What materials are used to manufacture quartz boats?
Quartz boats are typically manufactured from high-purity fused quartz or fused silica. The appropriate material grade depends on the application's temperature requirements, chemical environment, purity specifications, and processing conditions.
