Sapphire Single Crystal Ingot
Detailed Diagram
Overview

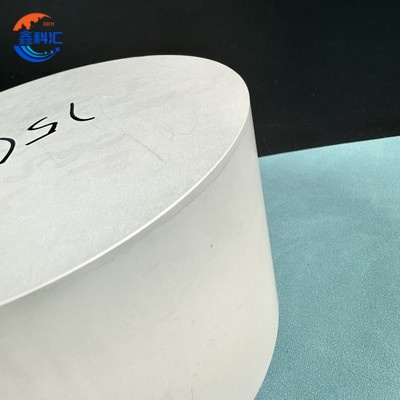

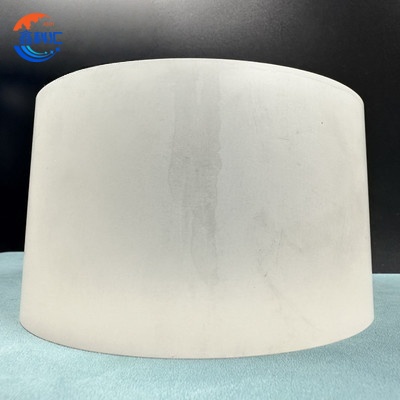

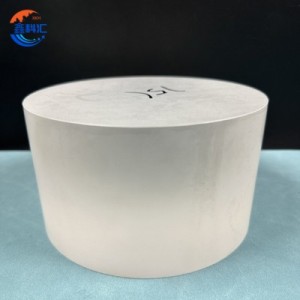

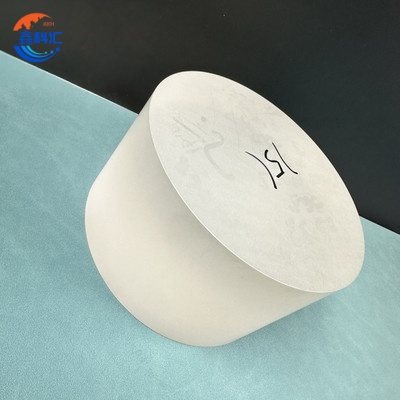

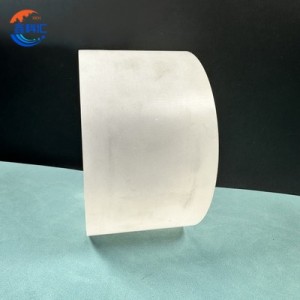

Sapphire crystal is a high-quality single crystal grown from high-purity aluminum oxide (Al₂O₃) using the Kyropoulos (KY) method or other advanced pulling techniques. The resulting cylindrical or tapered ingot features a smooth, dense surface and minimal internal defects. With outstanding optical, mechanical, and chemical properties, sapphire has become a key material for optoelectronics, semiconductors, and premium consumer electronics.
Key Properties
-
Extreme Hardness
-
Mohs hardness of 9, second only to diamond.
-
Exceptional scratch and wear resistance ensures long service life.
-
-
Excellent Optical Performance
-
High transmittance (≥85%) from ultraviolet to infrared wavelengths (about 190 nm–5 µm).
-
Stable refractive index around 1.76, enabling precise optical imaging and transmission.
-
-
Outstanding Thermal Characteristics
-
High melting point of ~2050 °C allows reliable operation in high-temperature environments.
-
Good thermal conductivity (≈35 W/m·K at room temperature) supports efficient heat dissipation.
-
-
Superior Chemical Stability
-
Resistant to acids, alkalis, salt spray, and most organic solvents.
-
Remains chemically inert in vacuum, inert gases, and strong oxidizing or reducing atmospheres.
-
-
Processability and Uniformity
-
KY-grown crystals exhibit uniform diameter and low internal stress.
-
Can be cut, polished, and coated to customer specifications, with surface roughness as low as Ra ≤ 0.2 nm.
-
Typical Applications
-
LED & Semiconductor Substrates
-
Ideal base for GaN, AlGaN, and other epitaxial materials in high-brightness LEDs, laser diodes, and power devices.
-
Stable crystal quality ensures high yield and long device life.
-
-
Optical and Infrared Windows
-
Suitable for infrared cameras, LiDAR systems, and aerospace sensor windows.
-
Performs reliably in harsh environments such as high pressure, sand, or marine salt spray.
-
-
Consumer Electronics
-
Premium watch covers, smartphone camera lens protectors, and fingerprint sensor covers.
-
Combines aesthetic clarity with exceptional scratch resistance.
-
-
Industrial & Scientific Equipment
-
Precision bearings, wear-resistant nozzles, high-pressure viewports.
-
Components for high-power lasers and advanced optical research.
-
Standard Specifications (Customizable)
| Parameter | Typical Range / Specification |
|---|---|
| Chemical Purity | ≥99.99% Al₂O₃ |
| Crystal Orientation | C-plane (0001), A-plane, or R-plane |
| Diameter | 2–8 inches or per customer request |
| Length/Thickness | 20–200 mm customizable |
| Optical Transmission | ≥85% (visible–IR range) |
| Flexural Strength | ≥350 MPa |
| Surface Roughness | Ra ≤ 0.2 nm (polished wafers) |
FAQ
Q1. What is a sapphire single crystal made of?
A1. It is composed of high-purity aluminum oxide (Al₂O₃) grown into a single crystal structure using the Kyropoulos (KY) method.
Q2. What crystal orientations are available?
A2. Common orientations include C-plane (0001), A-plane, and R-plane. We can customize orientation according to your device requirements.
Q3. What are the typical sizes or diameters you can supply?
A3. Standard diameters range from 2 to 8 inches, with lengths from 20 to 200 mm. Larger or special sizes can be produced on request.
Q4. Can the sapphire be used as a substrate for LED or GaN growth?
A4. Yes. Our KY-grown sapphire ingots have low dislocation density and high thermal stability, making them ideal substrates for GaN-based LEDs, laser diodes, and other semiconductor applications.
Q5. What optical properties does sapphire provide?
A5. Sapphire transmits over 85% of light from about 190 nm in the UV to around 5 µm in the infrared, with a refractive index of roughly 1.76.
