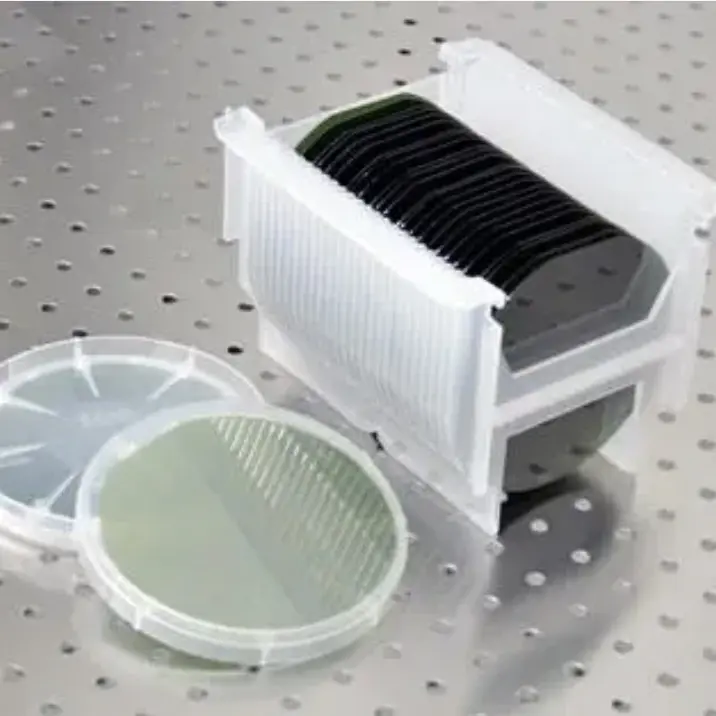

Silicon carbide (SiC) epitaxy sits at the heart of the modern power electronics revolution. From electric vehicles to renewable energy systems and high-voltage industrial drives, the performance and reliability of SiC devices depend less on circuit design than on what happens during a few micrometers of crystal growth on a wafer surface. Unlike silicon, where epitaxy is a mature and forgiving process, SiC epitaxy is a precise and unforgiving exercise in atomic-scale control.
This article explores how SiC epitaxy works, why thickness control is so critical, and why defects remain one of the toughest challenges in the entire SiC supply chain.
1. What Is SiC Epitaxy and Why Does It Matter?
Epitaxy refers to the growth of a crystalline layer whose atomic arrangement follows that of the underlying substrate. In SiC power devices, this epitaxial layer forms the active region where voltage blocking, current conduction, and switching behavior are defined.
Unlike silicon devices, which often rely on bulk doping, SiC devices depend heavily on epitaxial layers with carefully engineered thickness and doping profiles. A difference of just one micrometer in epitaxial thickness can significantly alter breakdown voltage, on-resistance, and long-term reliability.
In short, SiC epitaxy is not a supporting process—it defines the device.
2. The Basics of SiC Epitaxial Growth
Most commercial SiC epitaxy is performed using chemical vapor deposition (CVD) at extremely high temperatures, typically between 1,500 °C and 1,650 °C. Silane and hydrocarbon gases are introduced into a reactor, where silicon and carbon atoms decompose and reassemble on the wafer surface.
Several factors make SiC epitaxy fundamentally more complex than silicon epitaxy:
-
The strong covalent bonding between silicon and carbon
-
High growth temperatures close to material stability limits
-
Sensitivity to surface steps and substrate miscut
-
The existence of multiple SiC polytypes
Even slight deviations in gas flow, temperature uniformity, or surface preparation can introduce defects that propagate through the epitaxial layer.
3. Thickness Control: Why Micrometers Matter
In SiC power devices, epitaxial thickness directly determines voltage capability. For example, a 1,200 V device may require an epitaxial layer only a few micrometers thick, while a 10 kV device can demand tens of micrometers.
Achieving uniform thickness across an entire 150 mm or 200 mm wafer is a major engineering challenge. Variations as small as ±3% can lead to:
-
Uneven electric field distribution
-
Reduced breakdown voltage margins
-
Device-to-device performance inconsistency
Thickness control is further complicated by the need for precise doping concentration. In SiC epitaxy, thickness and doping are tightly coupled—adjusting one often affects the other. This interdependence forces manufacturers to balance growth rate, uniformity, and material quality simultaneously.
4. Defects: The Persistent Challenge
Despite rapid industry progress, defects remain the central obstacle in SiC epitaxy. Some of the most critical defect types include:
-
Basal plane dislocations, which can expand during device operation and cause bipolar degradation
-
Stacking faults, often triggered during epitaxial growth
-
Micropipes, largely reduced in modern substrates but still influential in yield
-
Carrot defects and triangular defects, linked to local growth instabilities
What makes epitaxial defects especially problematic is that many originate from the substrate but evolve during growth. An apparently acceptable wafer can develop electrically active defects only after epitaxy, making early screening difficult.
5. The Role of Substrate Quality
Epitaxy cannot compensate for poor substrates. Surface roughness, miscut angle, and basal plane dislocation density all strongly influence epitaxial outcomes.
As wafer diameters increase from 150 mm to 200 mm and beyond, maintaining uniform substrate quality becomes harder. Even minor variations across the wafer can translate into large differences in epitaxial behavior, increasing process complexity and reducing overall yield.
This tight coupling between substrate and epitaxy is one reason the SiC supply chain is far more vertically integrated than its silicon counterpart.
6. Scaling Challenges at Larger Wafer Sizes
The transition to larger SiC wafers amplifies every epitaxial challenge. Temperature gradients become harder to control, gas flow uniformity becomes more sensitive, and defect propagation paths lengthen.
At the same time, power device manufacturers demand tighter specifications: higher voltage ratings, lower defect densities, and better wafer-to-wafer consistency. Epitaxy systems must therefore achieve better control while operating at scales never originally envisioned for SiC.
This tension defines much of today’s innovation in epitaxial reactor design and process optimization.
7. Why SiC Epitaxy Defines Device Economics
In silicon manufacturing, epitaxy is often a cost line item. In SiC manufacturing, it is a value driver.
Epitaxial yield directly determines how many wafers can enter device fabrication, and how many finished devices meet specification. A small reduction in defect density or thickness variation can translate into significant cost reductions at the system level.
This is why advances in SiC epitaxy often have a larger impact on market adoption than breakthroughs in device design itself.
8. Looking Forward
SiC epitaxy is steadily moving from an art toward a science, but it has not yet reached the maturity of silicon. Continued progress will depend on better in-situ monitoring, tighter substrate control, and deeper understanding of defect formation mechanisms.
As power electronics push toward higher voltages, higher temperatures, and higher reliability standards, epitaxy will remain the quiet but decisive process shaping the future of SiC technology.
Ultimately, the performance of next-generation power systems may be determined not by circuit diagrams or packaging innovations, but by how precisely atoms are placed—one epitaxial layer at a time.
