Metallized Optical Windows: The Unsung Enablers in Precision Optics

In precision optics and optoelectronic systems, different components each play a specific role, working together to accomplish complex tasks. Because these components are manufactured in different ways, their surface treatments also vary. Among the widely used elements, optical windows come in many process variants. A seemingly simple yet crucial subset is the metallized optical window—not only the “gatekeeper” of the optical path, but also a true enabler of system functionality. Let’s take a closer look.

What is a metallized optical window—and why metallize it?

1) Definition

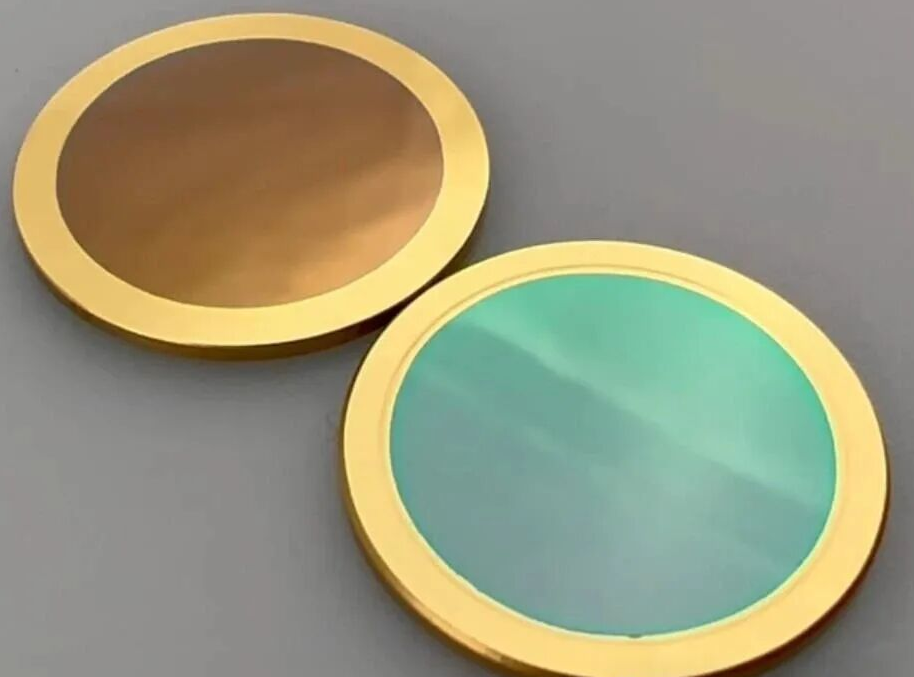

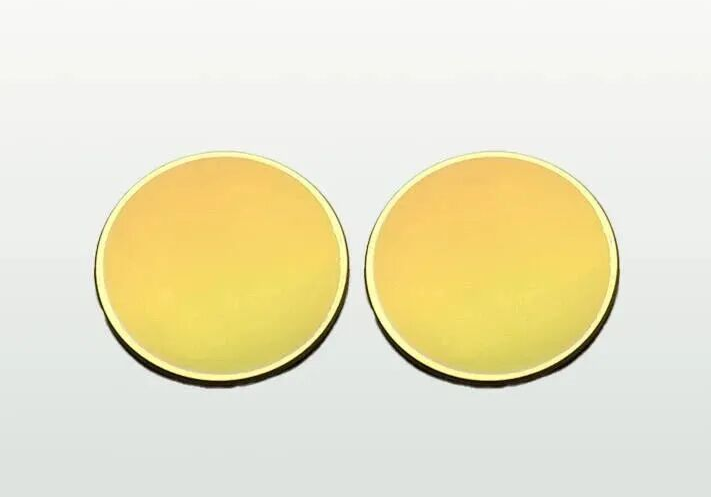

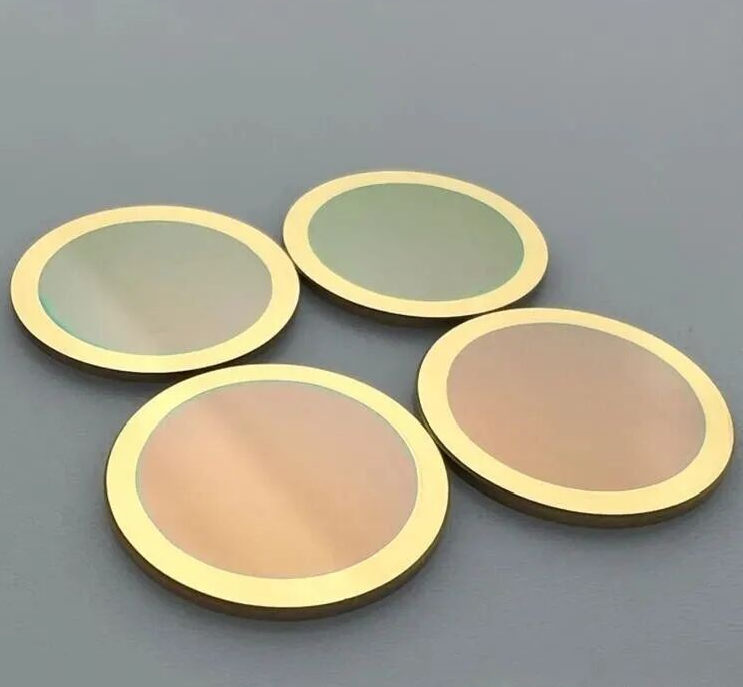

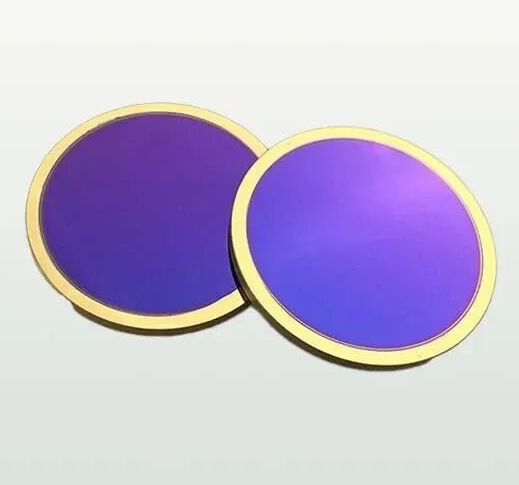

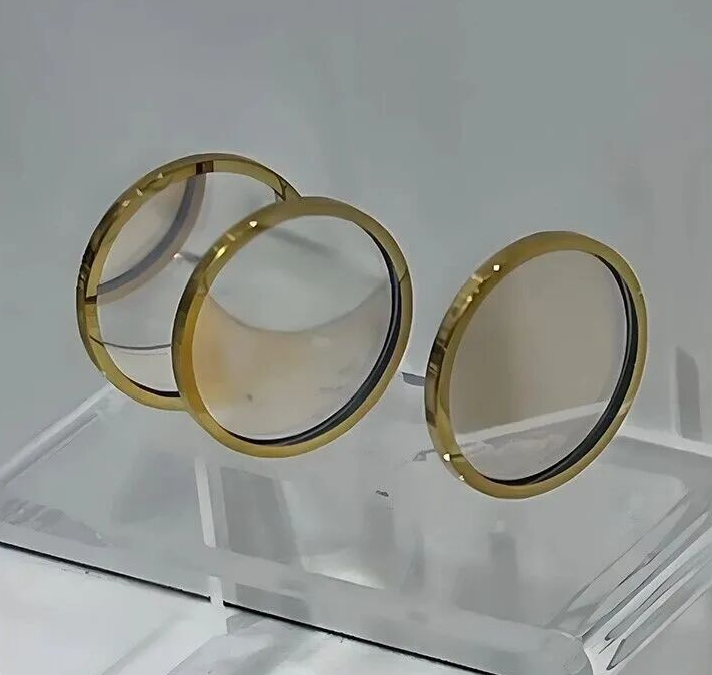

Put simply, a metallized optical window is an optical component whose substrate—typically glass, fused silica, sapphire, etc.—has a thin layer (or multilayer) of metal (e.g., Cr, Au, Ag, Al, Ni) deposited on its edges or on designated surface areas via high-precision vacuum processes such as evaporation or sputtering.

From a broad filtering taxonomy, metallized windows are not traditional “optical filters.” Classic filters (e.g., bandpass, long-pass) are designed to selectively transmit or reflect certain spectral bands, altering the light’s spectrum. An optical window, by contrast, is primarily protective. It must maintain high transmission over a wide band (e.g., VIS, IR, or UV) while providing environmental isolation and sealing.

More precisely, a metallized window is a specialized subclass of the optical window. Its distinctiveness lies in the metallization, which grants functions an ordinary window cannot provide.

2) Why metallize? Core purposes and benefits

Coating a nominally transparent component with an opaque metal may sound counterintuitive, but it’s a smart, purpose-driven choice. Metallization typically enables one or more of the following:

(a) Electromagnetic interference (EMI) shielding
In many electronic and optoelectronic systems, sensitive sensors (e.g., CCD/CMOS) and lasers are vulnerable to external EMI—and can also emit interference themselves. A continuous, conductive metal layer on the window can act like a Faraday cage, allowing light through while blocking unwanted RF/EM fields, thereby stabilizing device performance.

(b) Electrical connection and grounding
The metallized layer is conductive. By soldering a lead to it or by contacting it to a metal housing, you can create electrical pathways for elements mounted on the inner side of the window (e.g., heaters, temperature sensors, electrodes) or tie the window to ground to dissipate static and enhance shielding.

(c) Hermetic sealing
This is a cornerstone use case. In devices that require high vacuum or an inert atmosphere (e.g., laser tubes, photomultiplier tubes, aerospace sensors), the window must be joined to a metal package with a permanent, ultra-reliable seal. Using brazing, the metallized rim of the window is joined to the metal housing to achieve far better hermeticity than adhesive bonding, ensuring long-term environmental stability.

(d) Apertures and masks
Metallization need not cover the whole surface; it can be patterned. Depositing a tailored metal mask (e.g., circular or square) precisely defines the clear aperture, blocks stray light, and improves SNR and image quality.

Where metallized windows are used

Thanks to these capabilities, metallized windows are widely deployed wherever environments are demanding:

• Defense & aerospace: missile seekers, satellite payloads, airborne IR systems—where vibration, thermal extremes, and strong EMI are the norm. Metallization brings protection, sealing, and shielding.

• High-end industrial & research: high-power lasers, particle detectors, vacuum viewports, cryostats—applications that demand robust vacuum integrity, radiation tolerance, and reliable electrical interfaces.

• Medical & life sciences: instruments with integrated lasers (e.g., flow cytometers) that must seal the laser cavity while letting the beam out.

• Communications & sensing: fiber-optic modules and gas sensors that benefit from EMI shielding for signal purity.

Key specifications and selection criteria

When specifying or evaluating metallized optical windows, focus on:

1. Substrate material – Determines optical and physical performance:

• BK7/K9 glass: economical; suited to the visible.

• Fused silica: high transmission from UV to NIR; low CTE and excellent stability.

• Sapphire: extremely hard, scratch-resistant, high-temperature capable; broad UV–mid-IR utility in harsh environments.

• Si/Ge: primarily for IR bands.

2. Clear aperture (CA) – The region guaranteed to meet optical specs. Metallized areas generally lie outside (and larger than) the CA.

3. Metallization type & thickness –

• Cr is often used for light-blocking apertures and as an adhesion/brazing base.

• Au provides high conductivity and oxidation resistance for soldering/brazing.
  Typical thicknesses: tens to hundreds of nanometers, tailored to function.

4. Transmission – Percentage throughput over the target band (λ₁–λ₂). High-performance windows can exceed 99% within the design band (with appropriate AR coatings on the clear aperture).

5. Hermeticity – Critical for brazed windows; commonly verified via helium leak testing, with stringent leak rates such as < 1 × 10⁻⁸ cc/s (atm He).

6. Brazing compatibility – The metal stack must wet and bond well to chosen fillers (e.g., AuSn, AgCu eutectic) and withstand thermal cycling and mechanical stress.

7. Surface quality – Scratch-Dig (e.g., 60-40 or better); smaller numbers indicate fewer/lighter defects.

8. Surface figure – Flatness deviation, typically specified in waves at a given wavelength (e.g., λ/4, λ/10 @ 632.8 nm); smaller values mean better flatness.

Bottom line

Metallized optical windows sit at the nexus of optical performance and mechanical/electrical functionality. They go beyond mere transmission, serving as protective barriers, EMI shields, hermetic interfaces, and electrical bridges. Choosing the right solution requires a system-level trade study: Do you need conductivity? Brazed hermeticity? What’s the operating band? How severe are environmental loads? The answers drive the selection of substrate, metallization stack, and processing route.

It’s precisely this combination of micro-scale precision (tens of nanometers of engineered metal films) and macro-scale robustness (withstanding pressure differentials and brutal thermal swings) that makes metallized optical windows an indispensable “super window”—linking the delicate optical domain with the real world’s harshest conditions.
